Panajachel, Guatemala was the host to the 18th annual 10-day international Cycle Messenger World Championship, and will introduce for the first time an outdoor figure-8 velodrome: La Ocho. Working with graduates from the architecture faculty and Ins
       
     
 Track Geometry
       
     
 Linear Easement Curves
       
     
       
     
 Euler Spiral Easement Curves
       
     
DJA La Ocho (1).jpg
       
     
 Track Sections
       
     
 Track Length
       
     
       
     
DJA La Ocho (2).jpg
       
     
 Non-Planar Côte d'Azur
       
     
DJA La Ocho (3).jpg
       
     
 Ribbonization
       
     
 Free-Body Diagram
       
     
DJA La Ocho (5).jpg
       
     
 Friction and Speed Limits
       
     
       
     
 Project Credits
       
     
La Ocho - Panajachel, Guatemala (2010) 02bwb.jpg
       
     
La Ocho - Panajachel, Guatemala (2010) 05bwb.jpg
       
     
La Ocho - Panajachel, Guatemala (2010) 08bwb.pg.jpg
       
     
La Ocho - Panajachel, Guatemala (2010) 10bwb.jpg
       
     
La Ocho - Panajachel, Guatemala (2010) 13bwb.jpg
       
     
La Ocho - Panajachel, Guatemala (2010) 14bwb.jpg
       
     
La Ocho - Panajachel, Guatemala (2010) 18bwb.jpg
       
     
 Panajachel, Guatemala was the host to the 18th annual 10-day international Cycle Messenger World Championship, and will introduce for the first time an outdoor figure-8 velodrome: La Ocho. Working with graduates from the architecture faculty and Ins
       
     

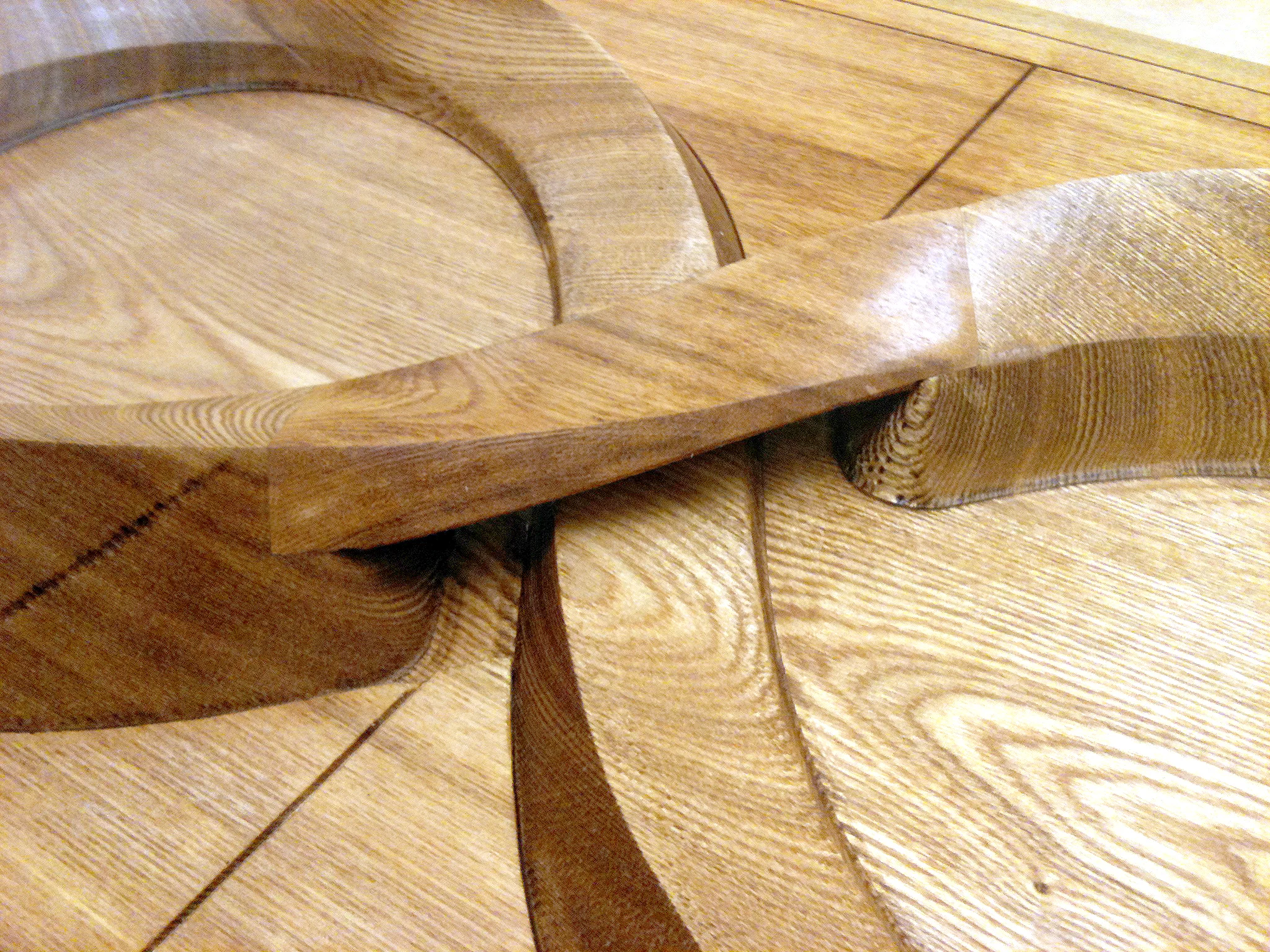

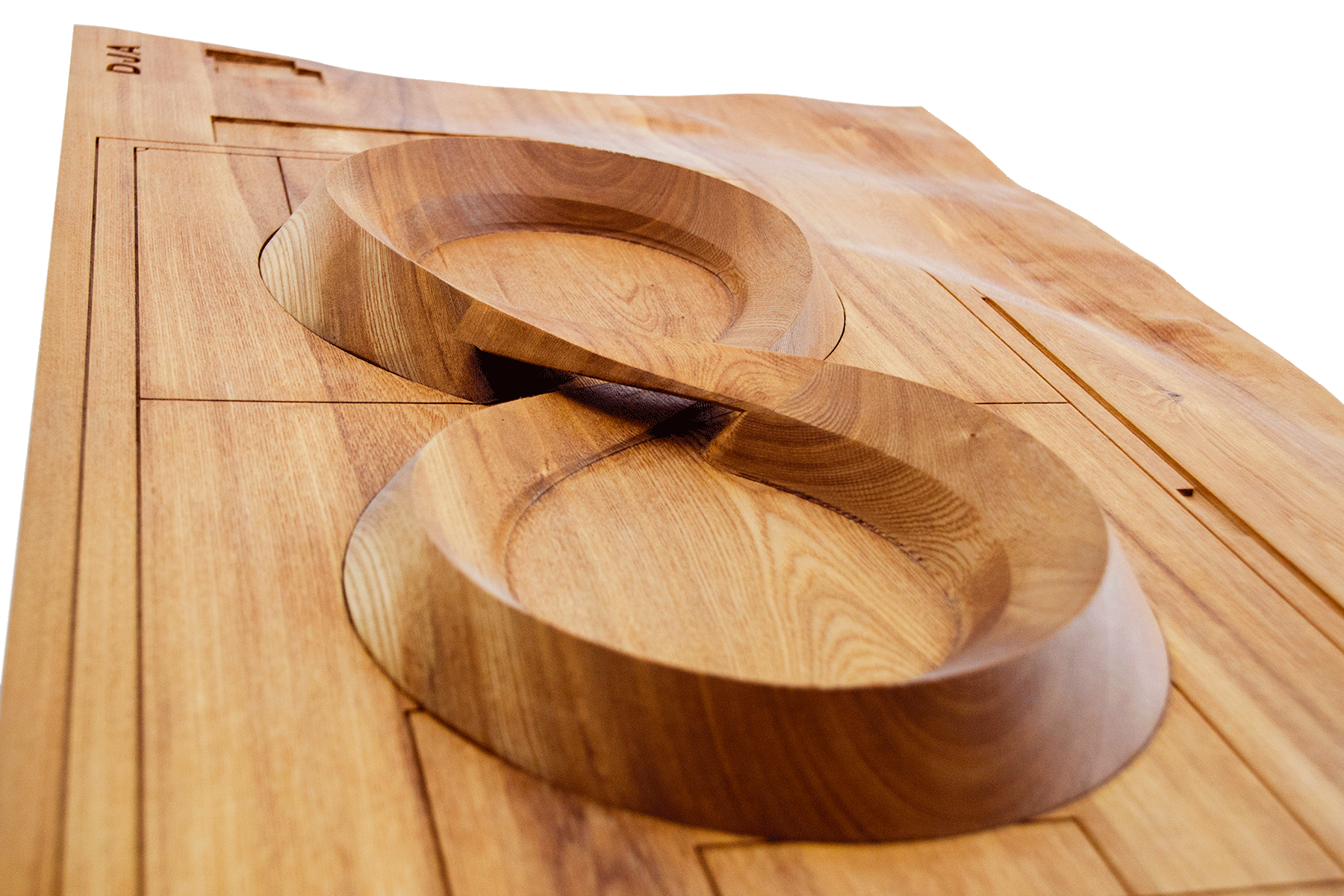

Panajachel, Guatemala was the host to the 18th annual 10-day international Cycle Messenger World Championship, and will introduce for the first time an outdoor figure-8 velodrome: La Ocho. Working with graduates from the architecture faculty and Institute for Aerospace Studies at the University of Toronto, as well as the Toronto- based organizer Nadir Olivet of La Carrera Cycles, the physics, construction and planning of this event and facility were set into motion.



PDF

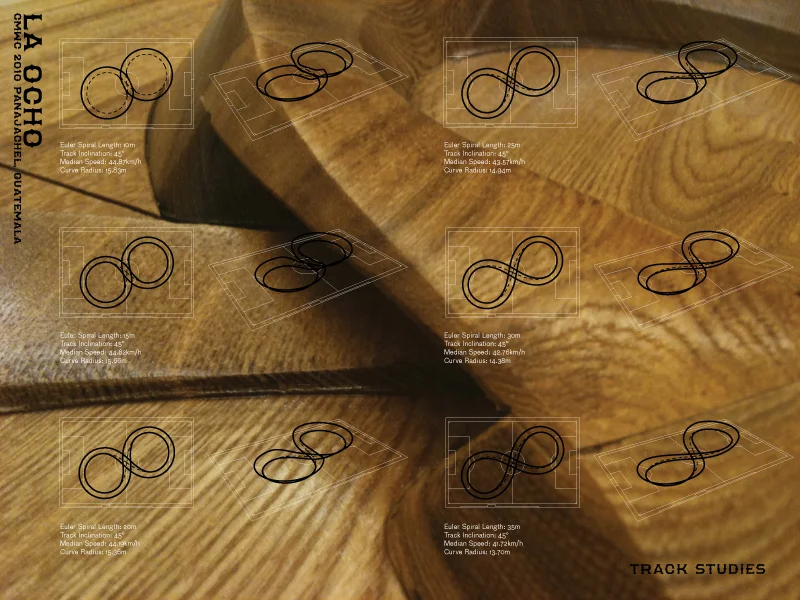

 Track Geometry
       
     

Track Geometry

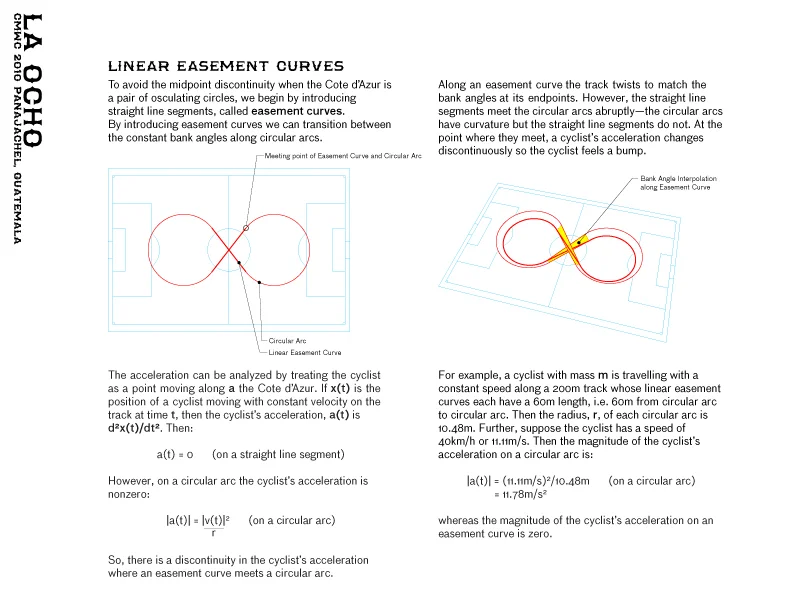

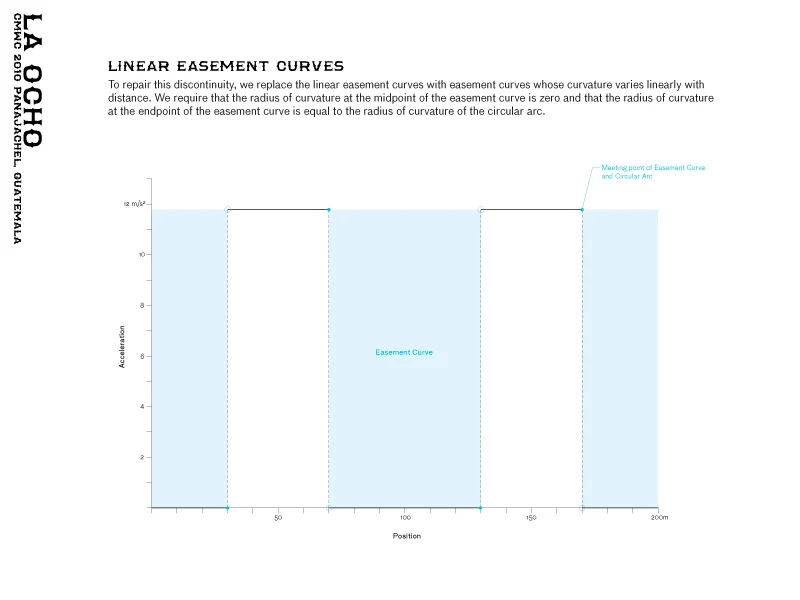

 Linear Easement Curves
       
     

Linear Easement Curves

       
     

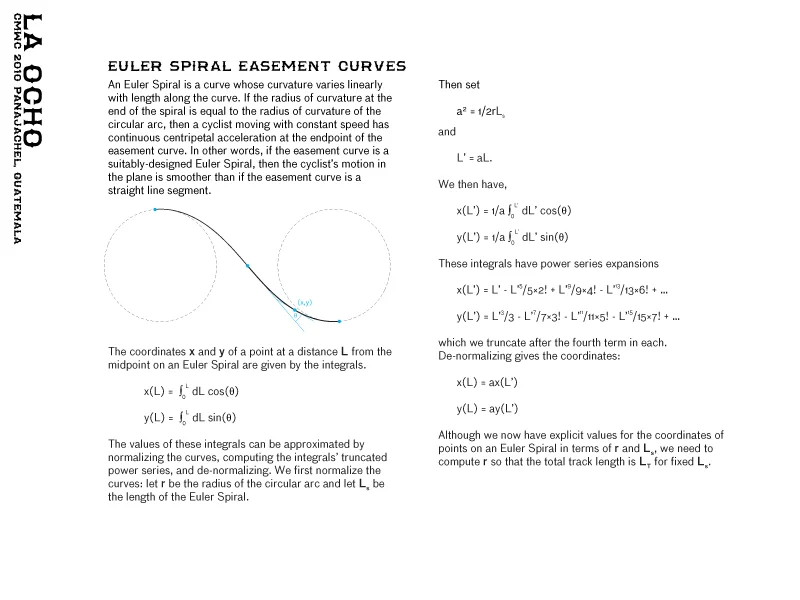

 Euler Spiral Easement Curves
       
     

Euler Spiral Easement Curves

DJA La Ocho (1).jpg
       
     

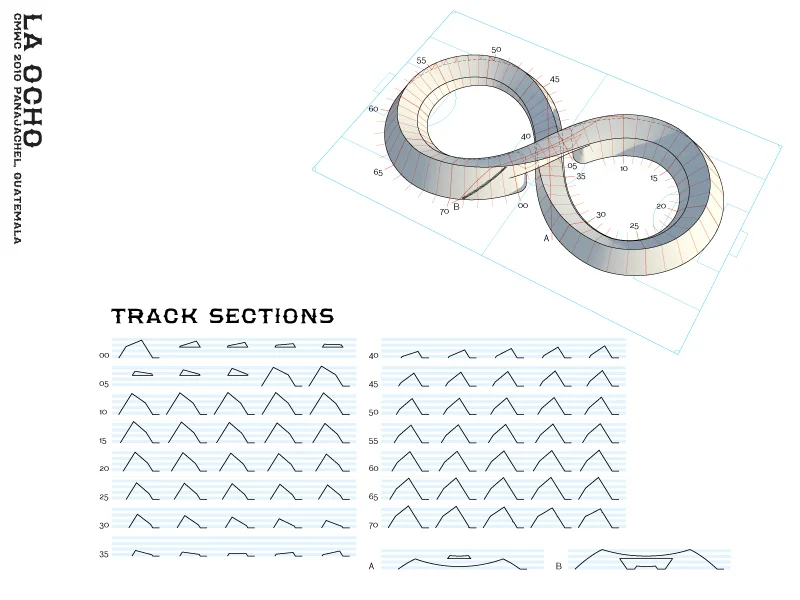

 Track Sections
       
     

Track Sections

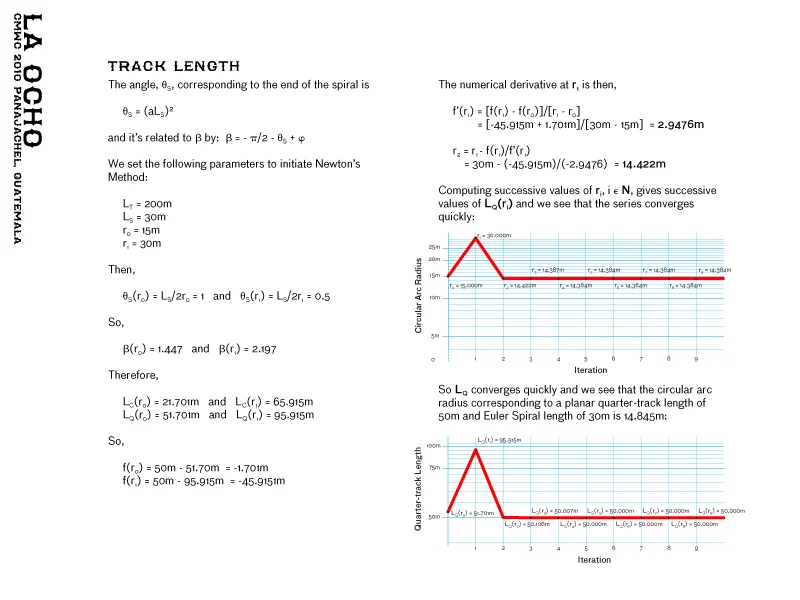

 Track Length
       
     

Track Length

       
     

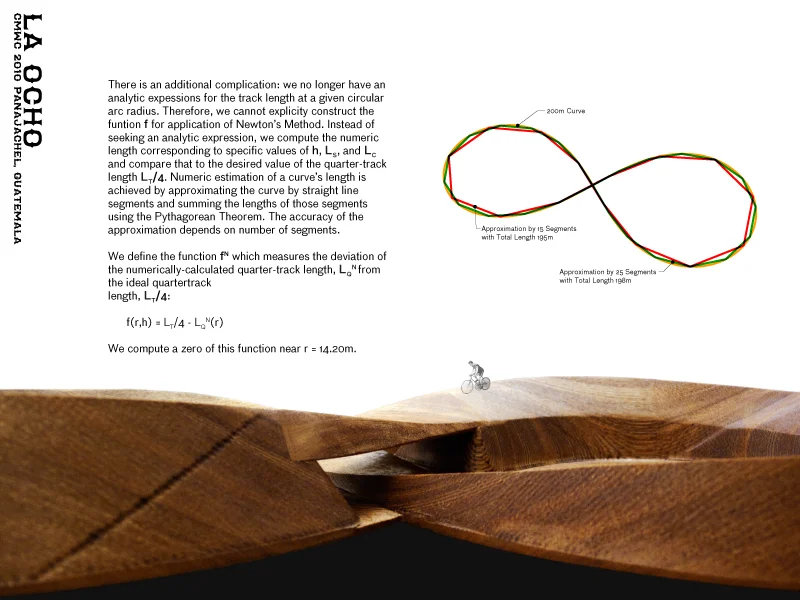

DJA La Ocho (2).jpg
       
     

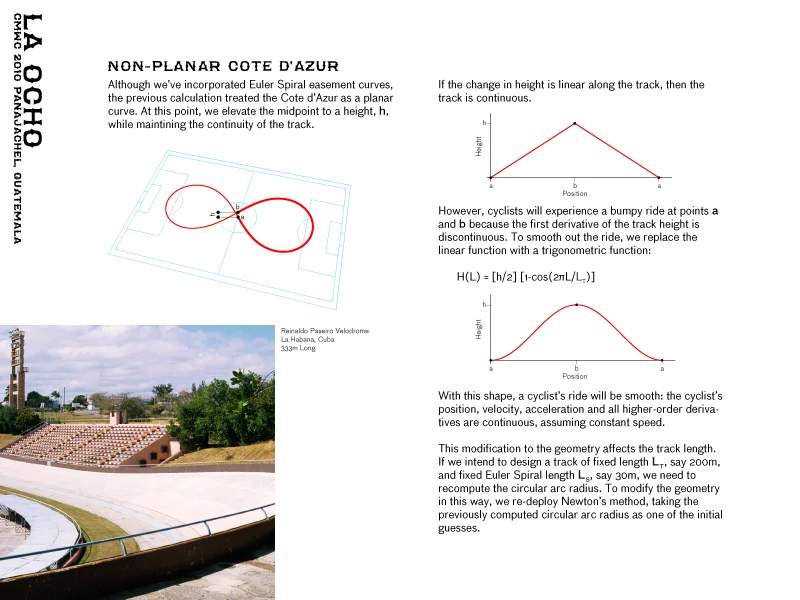

 Non-Planar Côte d'Azur
       
     

Non-Planar Côte d'Azur

DJA La Ocho (3).jpg
       
     
 Ribbonization
       
     

Ribbonization

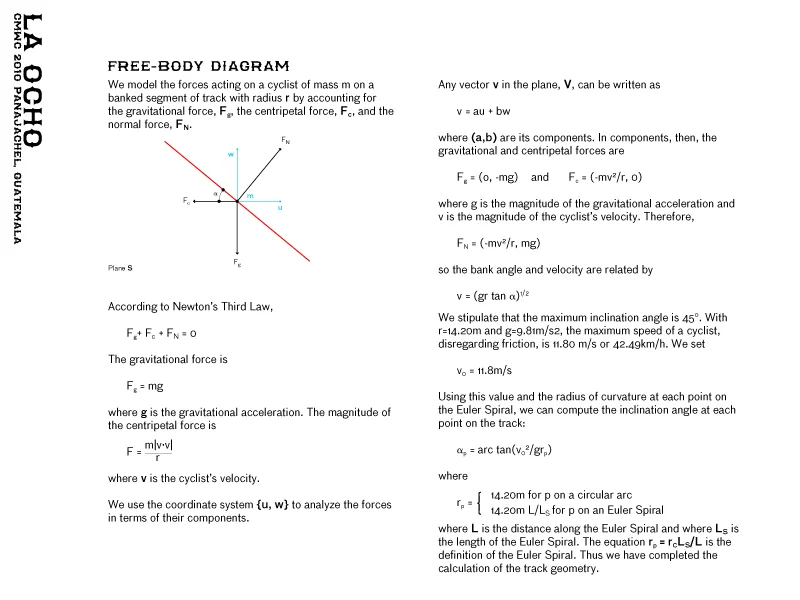

 Free-Body Diagram
       
     

Free-Body Diagram

DJA La Ocho (5).jpg
       
     

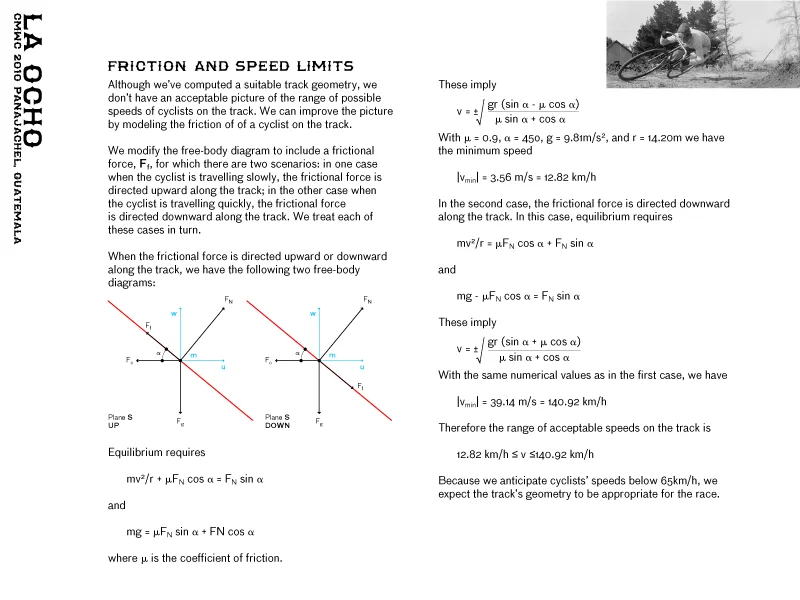

 Friction and Speed Limits
       
     
